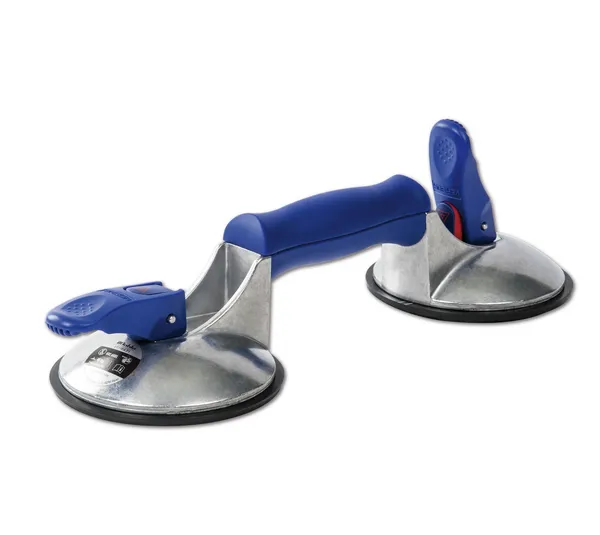

Veribor® suction lifter with safety indicator BO602.40BL
This proven Veribor® blue line rocker arm suction lifter is equipped with an integrated vacuum safety indicator.
Similar to pump suction lifters, the user is helped to recognise whether the suction lifter is lying correctly on the surface or whether there is a structure in the surface. As soon as the vacuum cannot be generated one hundred percent, the indicator on the rocker arm comes out and the suction lifter has to be repositioned. In daily work, you can always see whether the full lifting capacity is being achieved.
Your Advantages
- Checking the vacuum through patented safety indicator
- High safety and ergonomics
- Made in Germany
- GS-certified
- Individual areas of application
- Optimum temperature resistance of the rubber pad from 0° to 40°C
- Free from carcinogenic hydrocarbon compounds (PAH)
£ 58.25 ex.VAT
Technical Details
|
Diameter suction pad
|
120 mm
|
|
GS certified
|
Yes
|
|
Load capacity
|
60 kg
|
|
Material
|
Aluminium
|
|
Material suction pad
|
Rubber |
|
Model
|
With vacuum safety indicator
|
|
Number of suction pads
|
2
|
|
Package contents
|
1 Piece
|
|
Surface geometry
|
Flat |
|
Transport direction
|
Parallel
|
|
Type of vacuum generation
|
Lever
|
| Weight | 900 g |
|---|---|
| Brand | Bohle |
| Capacity per Pair | 60kg |
| Material | Aluminium |
| Surface geometry | Flat-Plain |
| Diameter suction pad | 120mm |
| Sales unit | 1 Set |
EAN 4010122002277
datasheetDatenblatt1
